Single Point Load Cell IN-51

Product Categories
Innovation Electronic Co.,Ltd
Contact Now

Single Point Load Cell IN-51

Place of Origin : China Load Cell

Brand Name : Innovation

Model Number : IN-51

MOQ : 10 pcs

Price : USD1-USD100

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/MONTH

Delivery Time : 7-15DAYS

Packaging Details : CARTON

Capacity : 10, 15, 25, 50, 100, 200lb

Contact Now

Single point load cell IN-51
Interchangeable Products
  • Artech SS60210
  • NCI Mark III
  • NCI Mark IX
  • Sensortronics 60051

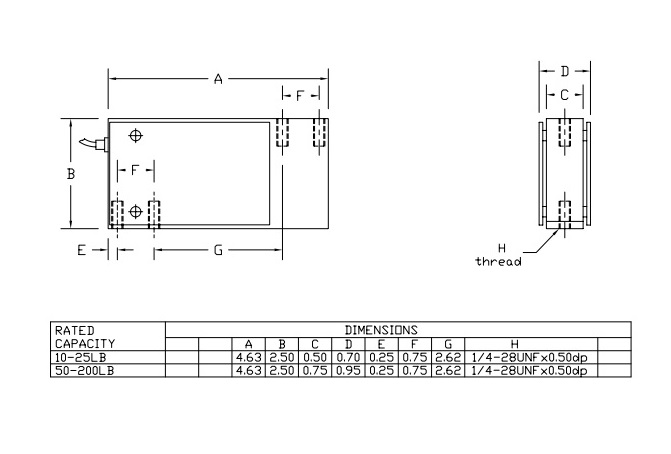

Load Cell Dimension:
Single Point Load Cell IN-51
Load Cell Parameters:

Items UNITTECHNICAL DATA
Capacitieslb10,15,25,50,100,200
Rated outputmV/V2±10%
Safe overloadFS150%
Excitation voltageV10-20 AC/DC
Input resistanceOHMS385±10
Output resistanceOHMS350±3
Zero balanceFS±1.00%
Seal typeFSENVIRONMENTALLY SEALED,POTTED,IP67
Non-linearityFS±0.03%
HysteresisFS±0.02%
Repeatability FS±0.02%
CreepFS±0.03%
Compensated temperature rangeºC-10 ~ +40
Temperature effect on zeroFS/ºC±0.02%
Temperature effect on outputFS/ºC±0.001%
Insulation resistanceMEGOHMS>5000
Load cell cable 4 conductor, 10 FT
Load cell wiring Red +EXC Black -EXC Green +SIG White -SIG Braid/yellow: shield
