IP69 Single Point Load Cell - IN-PW10A

Product Categories
Innovation Electronic Co.,Ltd
Contact Now

IP69 Single Point Load Cell - IN-PW10A

Brand Name : Innovation

Model Number : IN-PW10A

Place of Origin : China

MOQ : 1 pc

Price : USD1-USD100

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/MONTH

Delivery Time : 7-15DAYS

Packaging Details : CARTON

Capacity : 50,100,150,200,250,300kg

Contact Now

Single Point Load Cell - INPW-10A

Advantage:

IP69 Protection

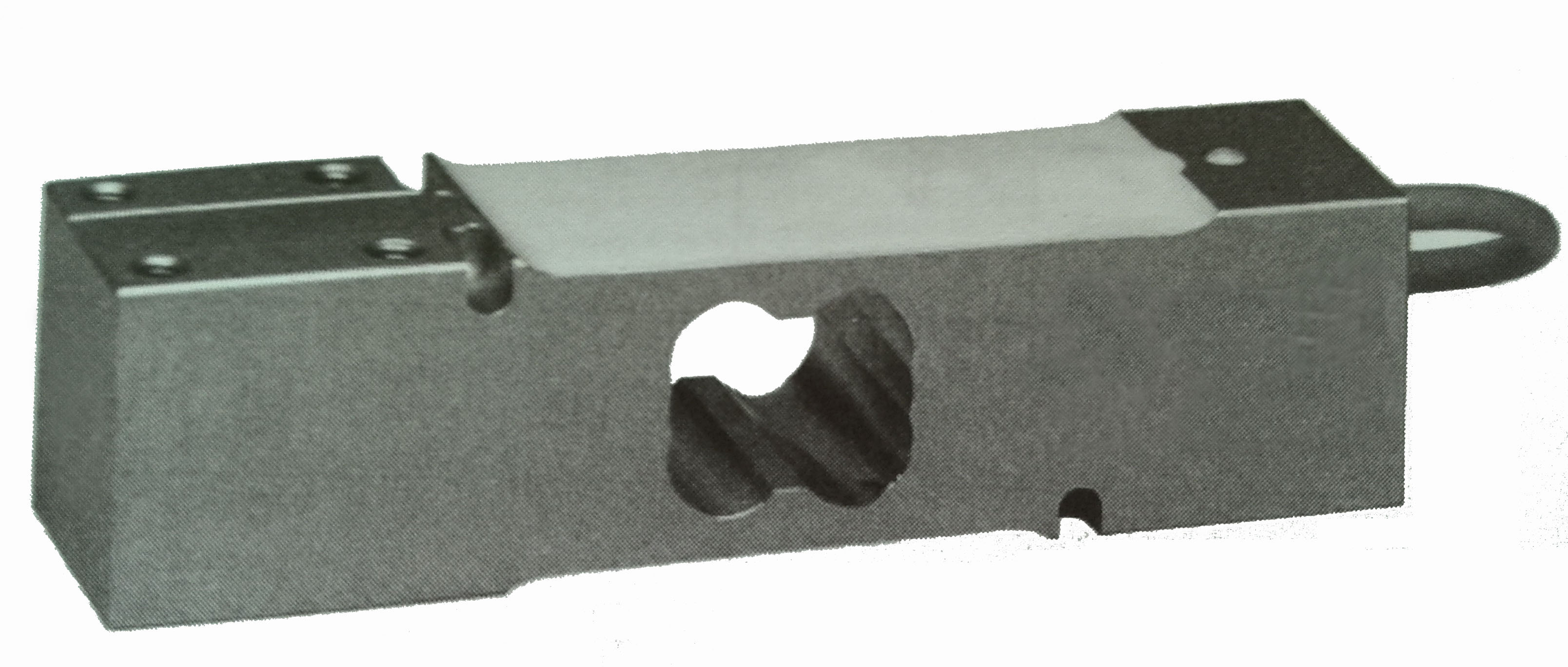

IP69 Single Point Load Cell - IN-PW10A

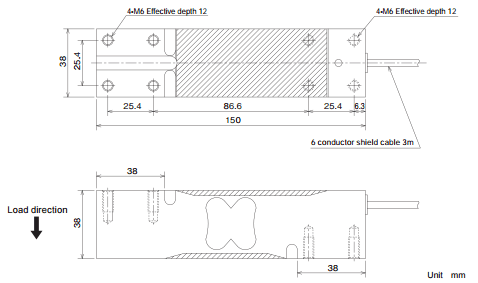

Single Point Load Cell Dimensions:

IP69 Single Point Load Cell - IN-PW10A

Single Point Load Cell Technical Parameters:

Model

IN-PW10A-50KG, IN-PW10A-100KG,

IN-PW10A-150KG,IN-PW10A-200KG,

IN-PW10A-250KG,IN-PW10A-300KG,
Rated Capacity 50,100,150,200,250,300 KG
Rated Output 2.0±0.2 mV/V
Safe Overload 150 %R.C.
Maximum safe overload 300 %R.C.
Maximum safe side overload 300 %R.C.
Zero balance ±6 %R.O.
Non-linearity 0.0166(typ) %R.O.
Hysteresis 0.0166(typ) %R.O.
Compensated temperature range -10 to +40 ℃
Safe temperature range -10 to +50 ℃
Temperature effect on zero

0.0140(50/100/200kg),

0.0093(150/300kg), 0.0112(250kg)

 %R.O./10K
Temperature effect on span 0.0175(+20 to +40℃), 0.00117(-10 to +20℃) %R.O./10K
Input resistance 300 to 500 Ω
Output resistance 330 to 430 Ω
Recommended excitation voltage 1 to 12 V
Insulation resistance 2000 or more MΩ
Degrees of protection IN67
Cable 6 conductor shield cable 3m
Load cell material Aluminum


IP69 Single Point Load Cell - IN-PW10A Manufactures

IP69 Single Point Load Cell - IN-PW10A Images
